Specifications:
- 20W Bridge Audio Amplifier kit, based on the TDA2005 IC, a class B dual audio amplifier, specifically designed for car radio applications etc.
- Power supply - 18 VDC
- Output power - 20 W, 4 Ω
- IC built in Thermal Shut-down, Load dump voltage surge protected
- Terminal pins for connecting left and right audio signal inputs
- Relimate Connector for connecting Potentiometer (POT) for volume adjustment
- Power Battery Terminal (PBT) for easy power supply and speaker connection
- Power-On LED indicator
- Heatsink for IC
- Four mounting holes of 3.2 mm each with nut and stud
- PCB dimensions 63 mm x 65 mm

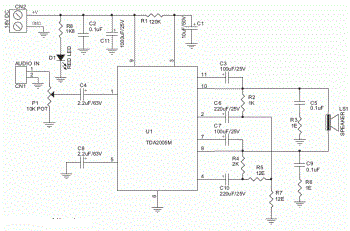

Schematic:
Pcb
Parts List
